Durable and Easy Clean Adjustable Speed Chain Scraper Conveyor for Material Transmission

Durable and Easy Clean Adjustable Speed Chain Scraper Conveyor for Material Transmission

Nome da marca:	WESEW
Número do modelo:	W003
MOQ:	1pcs
preço:	US$75000~US$20,000/set
Condições de pagamento:	T/T, Western Union
Capacidade de abastecimento:	100 conjuntos por mês

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

CHINA

Certificação:

Material:

Aço carbono

Característica do material:

Resistente ao calor, resistente ao fogo

Aplicativo:

Indústria química, transporte de grãos, transporte de mineração, usina de energia

Indústrias aplicáveis:

Fábrica, energia e mineração

Componentes principais:

Motor, motor

Dimensão (l*w*h):

Personalizado

Especificação:

Personalizado

Estrutura:

Transportador de cadeia

Detalhes da embalagem:

Estojo de madeira

Habilidade da fonte:

100 conjuntos por mês

Destacar:

Durable Scraper Conveyor

Adjustable Speed Drag Chain Conveyor

Simple Operation Chain Scraper Conveyor

Descrição do produto

Custom Scraper Conveyor for Industrial Material Handling

Our custom-built scraper conveyor is engineered for efficient material conveying in demanding industrial environments. This drag chain conveyor system excels in handling dry slag, ash, and various bulk materials across multiple industries.

Key Specifications

Material	Stainless Steel, Carbon Steel
Special Features	Durable, Heat Resistant, Easy to Clean
Speed	Adjustable
Applicable Industries	Manufacturing Plant, Energy & Mining
Dimensions	Customized to Your Requirements
Voltage	220V, 380V or Local Power Standard
Warranty	1 Year

System Overview

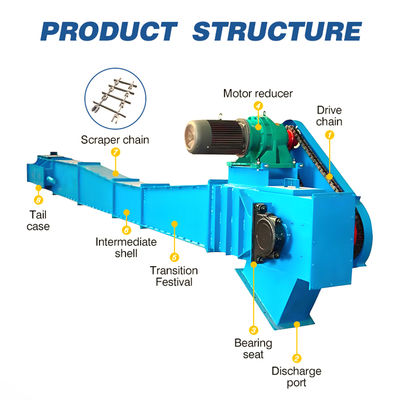

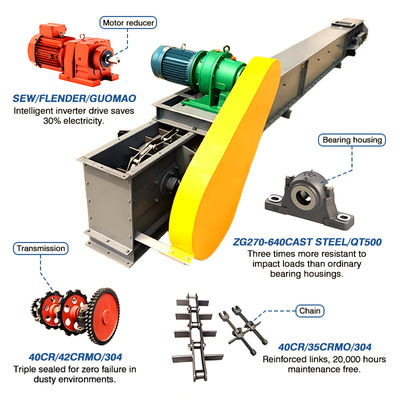

The chain scraper conveyor is a continuous conveying system composed of chain, scraper, driving device and trough body. The motor-driven chain propels the scraper to push material along the trough, offering simple operation, excellent sealing, and long-distance conveying capability.

Core Advantages: Compact structure, superior sealing performance, high conveying efficiency, and exceptional adaptability to various materials and environments.

Material Handling Capabilities

Wide adaptability for diverse material types
Handles materials ranging from light powders to medium-density granular and small block materials
Grain Industry: Wheat, corn, soybeans, flour, rice bran
Chemical Industry: Plastic pellets, fertilizers, calcium carbonate, fly ash
Power Industry: Biomass fuel, sawdust, wood chips
Building Materials: Cement, slag, crushed gypsum

Durable Construction Features

Our wear-resistant design withstands high temperature, high pressure, and corrosive environments, making it an efficient solution for bulk material conveying in challenging conditions.

Product Gallery
