Custom Stainless Steel Drum Mixer Dry-Wet Mixing Equipment Weighing Hopper Platform Drum Mixer - Weighing Hopper for Food, Pharmaceutical, and Chemical Industries

Name: Custom Stainless Steel Drum Mixer Dry-Wet Mixing Equipment Weighing Hopper Platform Drum Mixer - Weighing Hopper for Food, Pharmaceutical, and Chemical Industries
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: China
Price: 2,785.00 USD
Availability: InStock

Nome da marca:	WESEW
Número do modelo:	China
MOQ:	1 unidade
preço:	US$5500~US$70,000 per pc
Condições de pagamento:	T/T, União Ocidental
Capacidade de abastecimento:	10000 conjuntos por mês

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

China

Certificação:

ce/ul

Material:

Aço inoxidável/personalizado

Característica do material:

Resistente ao calor, resistente ao fogo

Aplicativo:

Indústria química, transporte de grãos, transporte de mineração, usina de energia

Componentes principais:

Motor

Dimensão (C*L*A):

Personalizado

Especificação:

Personalizado

Nome do produto:

Misturador de tambor de aço inoxidável

Detalhes da embalagem:

caixa de madeira

Habilidade da fonte:

10000 conjuntos por mês

Destacar:

stainless steel drum mixer

weighing hopper mixer equipment

dry-wet mixing machine

Descrição do produto

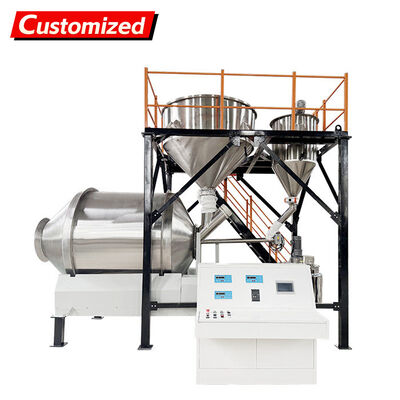

Custom Stainless Steel Drum Mixer with Weighing Hopper

Our custom stainless steel drum mixer with integrated weighing hopper platform combines precision weighing and efficient mixing capabilities for the food, pharmaceutical, and chemical industries. This advanced equipment features optimized roller design for smooth operation and automated material management, enhancing production efficiency and data accuracy.

Equipment Functions

Weighing Function

Accurately measures weight of powdered, granular, or lumpy materials
Automatically controls feed rates based on preset weight parameters
Provides reliable data for automated material management systems

Mixing Function

Drum rotation creates tumbling action for convective mixing
Continuous rotation enhances material uniformity and distribution
Internal structures optimize material trajectories for efficient blending
Compartmentalized designs enable zone-by-zone mixing before full-batch blending

Industry Applications

Food Industry

Ensures precise weighing and mixing according to food formulation requirements, maintaining quality and nutritional content while meeting diverse production needs.

Pharmaceutical Industry

Weighs active ingredients and excipients with gentle blending to guarantee drug content accuracy. Enables strict quality control and prevents efficacy issues from composition deviations.

Chemical Industry

Precisely weighs high-purity raw materials for coatings, compound fertilizers, and chemical products. Fine-tuned mixing processes enhance product quality and market competitiveness.

Technical Specifications

Model	HDJX-60	HDJX-70	HDJX-80	HDJX-95	HDJX-1080	HDJX-1290	HDJX-1450	HDJX-1600	HDJX-1800
Cylinder Diameter (mm)	600	700	800	950	1080	1290	1450	1600	1800
Total Cylinder Length (mm)	970	1100	1160	1380	1560	1950	2375	2520	2800
Usable Volume (L)	60	100	120	200	316	530	900	1180	2300
Feed Port Height (mm)	1100	1200	1200	1300	1400	1420	1800	custom	custom
Discharge Port Height (mm)	400	400	400	400	400	400	400	custom	custom
Cylinder Wall Thickness (mm)	1.5	1.8	1.8	1.8	2.4	2.5	3.0	4.0	5.0
Operating Voltage (V)	220/380	220/380	220/380	380	380	380	380	380	380
Motor Power (kW)	0.4	0.4	0.55	3	3	4	3	4	5.5
Overall Dimensions (mm)	1500×660×1300	1500×760×1400	1500×860×1400	2100×1050×1650	2100×1150×1750	2500×1500×2100	3200×1650×2450	3600×1850×2500	4300×2100×2100

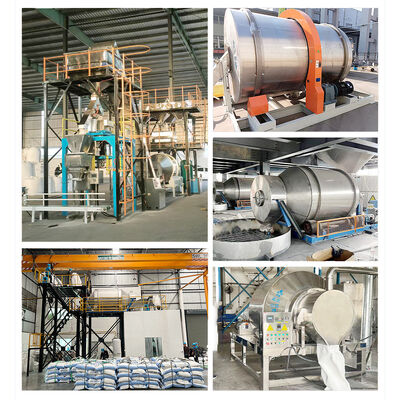

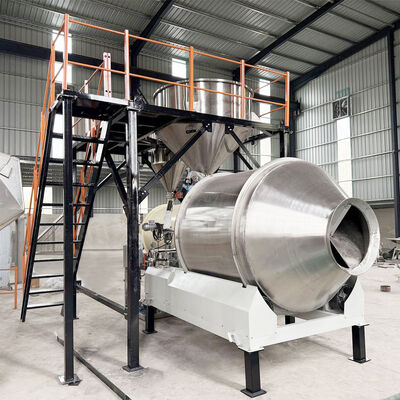

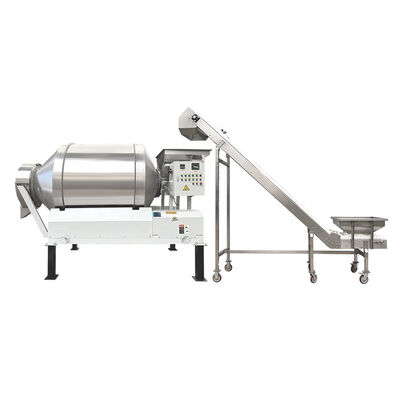

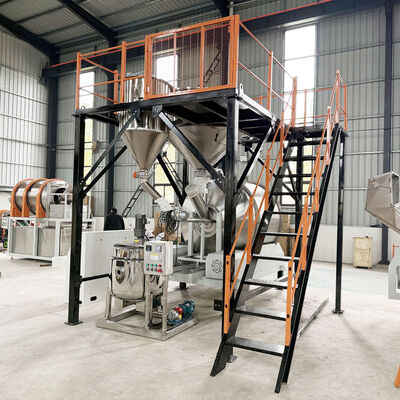

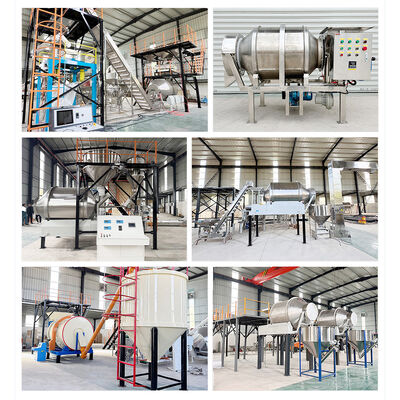

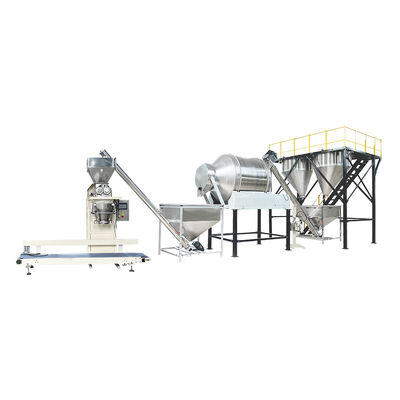

Product Gallery
