Industrial Double-Spiral Screw Classifier Sand Washing Machine for Fine Sand Gravel Grit Silica Washing

Industrial Double-Spiral Screw Classifier Sand Washing Machine for Fine Sand Gravel Grit Silica Washing

Nome da marca:	WeSeW
Número do modelo:	Cai001
MOQ:	1pcs
preço:	US$20,000~US$80,000 per pc
Condições de pagamento:	T/T, Western Union
Capacidade de abastecimento:	10000pcs por mês

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

CHINA

Certificação:

CE,UL

Material:

Aço inoxidável/personalizado

Característica do material:

Resistente ao calor, resistente ao fogo

Aplicativo:

Indústria química, transporte de grãos, transporte de mineração, usina de energia

Componentes principais:

Motor

Dimensão (l*w*h):

Personalizado

Especificação:

Personalizado

Estrutura:

Sistema transportador

Detalhes da embalagem:

Estojo de madeira

Habilidade da fonte:

10000pcs por mês

Destacar:

Fine Sand Gravel Grit Silica Washing Sand Screw Washer

Industrial Spiral Sand Washer

Double-Spiral Screw Classifier Sand Washing Machine

Descrição do produto

Industrial Double-Spiral Screw Classifier Sand Washing Machine

The double-screw sand washer is a high-efficiency industrial solution for washing fine sand, gravel, grit, and silica. This robust equipment operates on the principle of differential sedimentation velocity to classify particles between 1.5mm-0.03mm, effectively separating waste mud and water from valuable ores.

Product Specifications

Product Name	Industrial Spiral Screw Classifier Sand Washing Machine
Key Feature	Spiral sand washing machine
Motor Type	AC Motor
Capacity	6-400t/h
Core Components	Bearing, Gearbox, Motor
Weight	500 KG
Applications	Motorway construction, hydropower projects, building material washing, classification, and contaminant removal

Key Advantages

Low power consumption with high classifying efficiency
Heavy-duty construction for extended working life
Dual control system (manual and electric lifting device)
Adjustable weir height with rigid tank structure
Minimal loss of medium-fine sand and stone powder
Energy-efficient operation with large processing capacity
Environmentally friendly design with water recycling capability

Operational Features

This spiral classifier serves as mechanical grading equipment in beneficiation processes. The double-spiral design efficiently filters coarse material while discharging fine material through the overflow tube. It's particularly effective for ore washing, desliming, and dehydration applications.

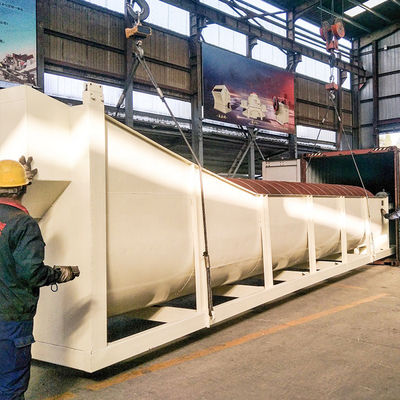

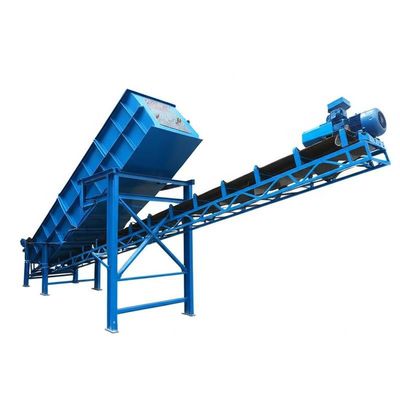

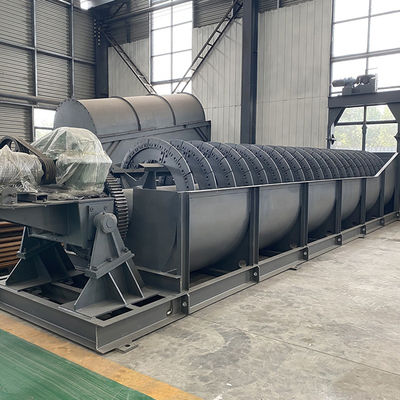

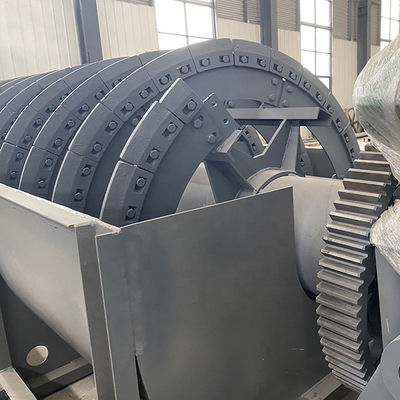

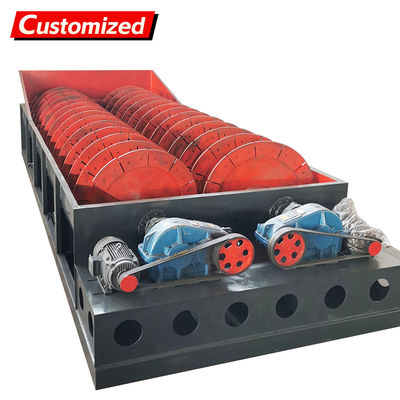

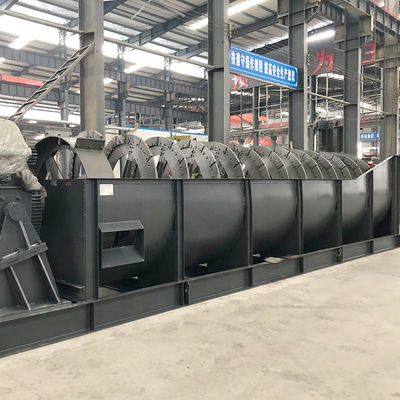

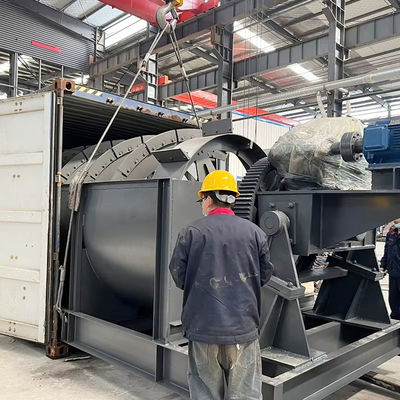

Product Gallery
