Customized spiral sand washing machine 70-300TPH river stone sand and gravel bucket wheel sand washing machine 30kW high-yield Chinese supplier factory

Customized spiral sand washing machine 70-300TPH river stone sand and gravel bucket wheel sand washing machine 30kW high-yield Chinese supplier factory

Nome da marca:	WeSeW
Número do modelo:	Cai001
MOQ:	1 unidade
preço:	US$20,000~US$80,000 per pc
Condições de pagamento:	T/T, União Ocidental
Capacidade de abastecimento:	10.000 unidades por mês

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

China

Certificação:

CE,UL

Material:

Aço inoxidável/personalizado

Característica do material:

Resistente ao calor, resistente ao fogo

Aplicativo:

Indústria química, transporte de grãos, transporte de mineração, usina de energia

Componentes principais:

Motor

Dimensão (C*L*A):

Personalizado

Especificação:

Personalizado

Nome:

Lavadora de parafusos de areia

Detalhes da embalagem:

caixa de madeira

Habilidade da fonte:

10.000 unidades por mês

Destacar:

customized spiral sand washing machine

river stone sand gravel washer

high-yield bucket wheel sand washer

Descrição do produto

Customized Spiral Sand Washing Machine

Our 70-300TPH river stone sand and gravel bucket wheel sand washing machine is a 30kW high-yield solution designed for optimal performance in sand processing operations.

Product Overview

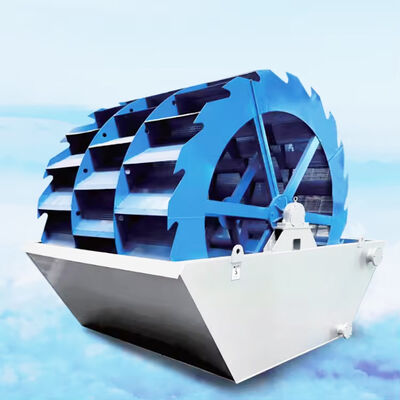

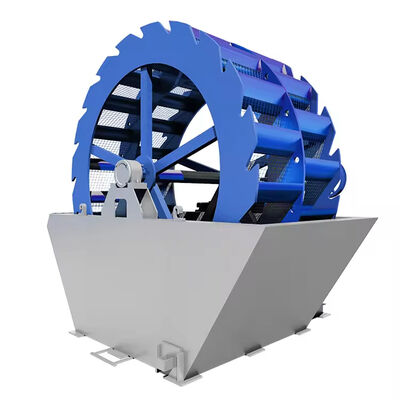

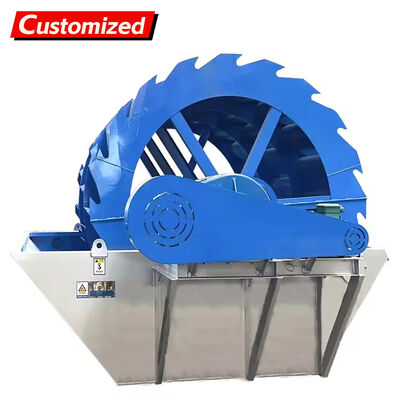

The bucket wheel sand washing machine incorporates industry experience and practical design to deliver superior washing, grading, and impurity removal for sand and gravel materials. This equipment significantly enhances finished sand quality and serves as the preferred solution for wet processing in artificial sand production.

Key Features & Benefits

Rational structure design with low power consumption, high throughput, superior cleanliness, effective dewatering, and minimized sand loss
Impeller drive bearing assembly isolated from water and processed materials for high-precision sand/water separation and reduced failure rates
Innovative sealed construction, oil-bath transmission mechanism, and adjustable weir plates ensure operational efficiency and durability

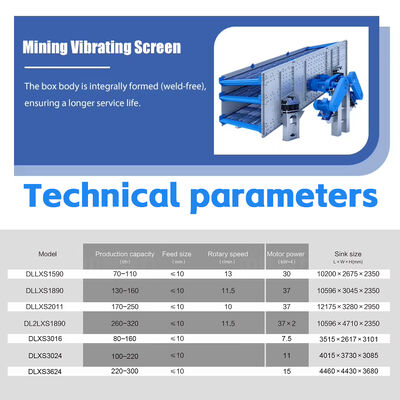

Technical Specifications

Motor Type	AC Motor
Capacity	70-300 t/h
Core Components	Engine
Weight	13,000 KG
Available Colors	White, Green, Blue, Black
Quality Assurance	Video outgoing-inspection and Machinery Test Report Provided
Dimensions (L×W×H)	10200×2675×2350 mm
Motor Power	30kW
Primary Application	Washing
Key Advantage	High Output
Maximum Feed Size	≤10mm

Spiral Washer Capabilities

Also known as sand washer or fine mineral washer, this highly efficient industrial washing equipment processes fine materials with particle sizes less than 10 mm. It excels in large-scale processing of sand and gravel materials containing soil, dust, or impurities.

Widely used across aggregate, highways, mining and recycling industries, the Spiral Washer offers simple structure, stable operation, and easy maintenance. It serves as an ideal solution for washing, classification and dewatering applications.

Configuration Options

Available in single spiral shaft and double spiral shaft configurations. The double spiral washer provides greater processing capacity and higher efficiency, making it particularly suitable for large-scale plant operations.
